型號: 050-060-080-100-125-140-150
Power from 0,12 kW up to 45 kW with three phase 4 pole motors
Reduction ratios between 4,06 and 394,69
Torque max 9.500 Nm
Admissible radial loads max 30.000 N

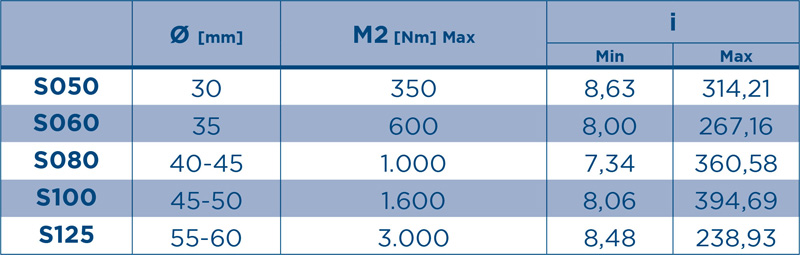

型號: 050-060-080-100-125
Universal casing
Versions: S... C Foot-flange mounting / Hollow shaf - S... D Foot-flange mounting / Solid shaft - S... L Foot-flange mounting / Shrink disc shaft
Gearing with 2 and 3 reduction stages
Modularity
Gears hardened and tempered with shaved or ground profile
Cases in EN-GJL-200 grey cast iron for high strength and optimized with FEM analysis
Excellent mechanical strength
Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
Painted with RAL 5010 blue epoxy-polyester powder according to DIN 1843
型號: 140-150
Universal casing
Versions: S... C Foot-flange mounting / Hollow shaft, S... L Foot-flange mounting / Shrink disc shaft
Gearing with 2 and 3 reduction stages
Gears hardened and tempered with ground profile
Cases in EN-GJL-200 grey cast iron
Load capacity calculated to ISO 6336, DIN 3990 and AGMA 2001
Gearboxes supplied without lubricant
Painted with RAL 5010 blue epoxy-polyester powder according to DIN 1843
